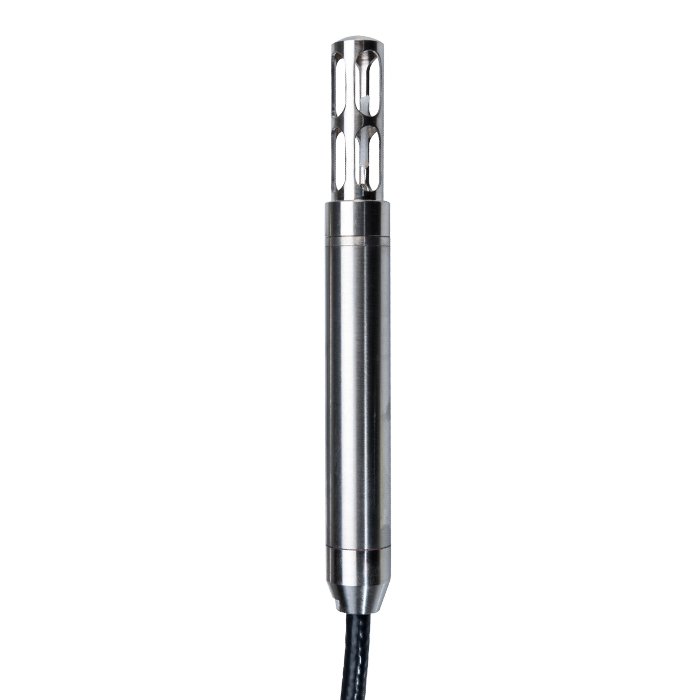

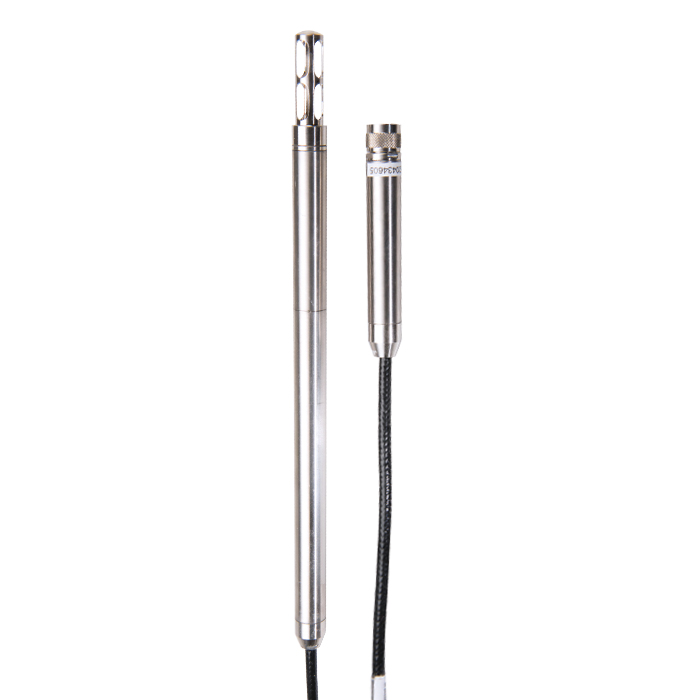

ROTRONIC HC2A-IM
High-Temperature probe for harsh environment and Temperatures up to -100…200 °C
Key features
- Accuracy: ±0.8 %RH, ±0.1 K, at 23 °C ±5 K
- Digital interface (UART) and scalable analog outputs, 0…1 V
- GAMP compatible (HygroSoft Software)
| 在23 ±5 °C时精度 | ±0.8 %rh / ±0.1 °C |
|---|---|
| 探头类型 | EX探头 |
| 集成探头测量范围 | -40…85 °C / 0…100 %rh |
| 传感器 | Hygromer IN-1 |
| 温度传感器 | Pt100 Class A |
| 校准/调整 | 不通过设备菜单 (only outside the ex限 HW4 + AC3001防爆区域以外) |
| 电缆长度 | 2/5/10 米 |
| IP防护等级 | IP66 |
| 探头材质 | 不锈钢 |
| EX识别 | EX II 1/2 G Ex ia IIC T5 Ga/Gb EX II 1/2 D Ex ia IIIC T80°C Da/Db |
| EX北美识别 | Class I, Div 1/2, Groups ABCD T5…T4, Class II, Div 1/2, Groups EFG T80°C…T110°C Ex e mb [ia Ga] IIC T5...T4 Ga/Gb Ex tb [ia Da] IIIC T80°C…T110°C Da/Db Class I, Zone 0/1, AEx e mb [ia Ga] IIC T5…T4 Ga/Gb Class II, Zone 20/21, AEx tb [ia Da] IIIC T80°C…T110°C Da/Db |
| 尺寸 | 125/285 x 15 mm |
